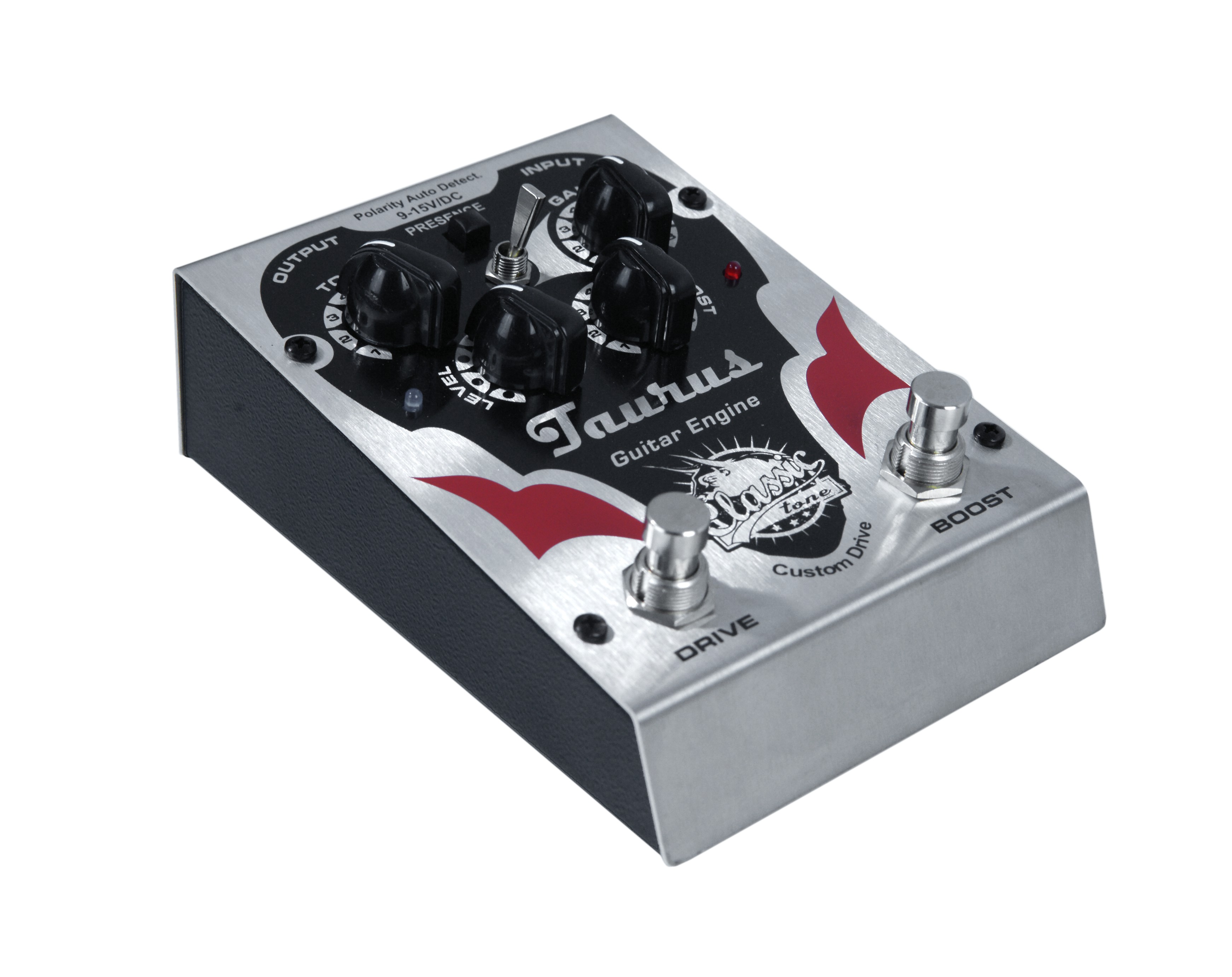

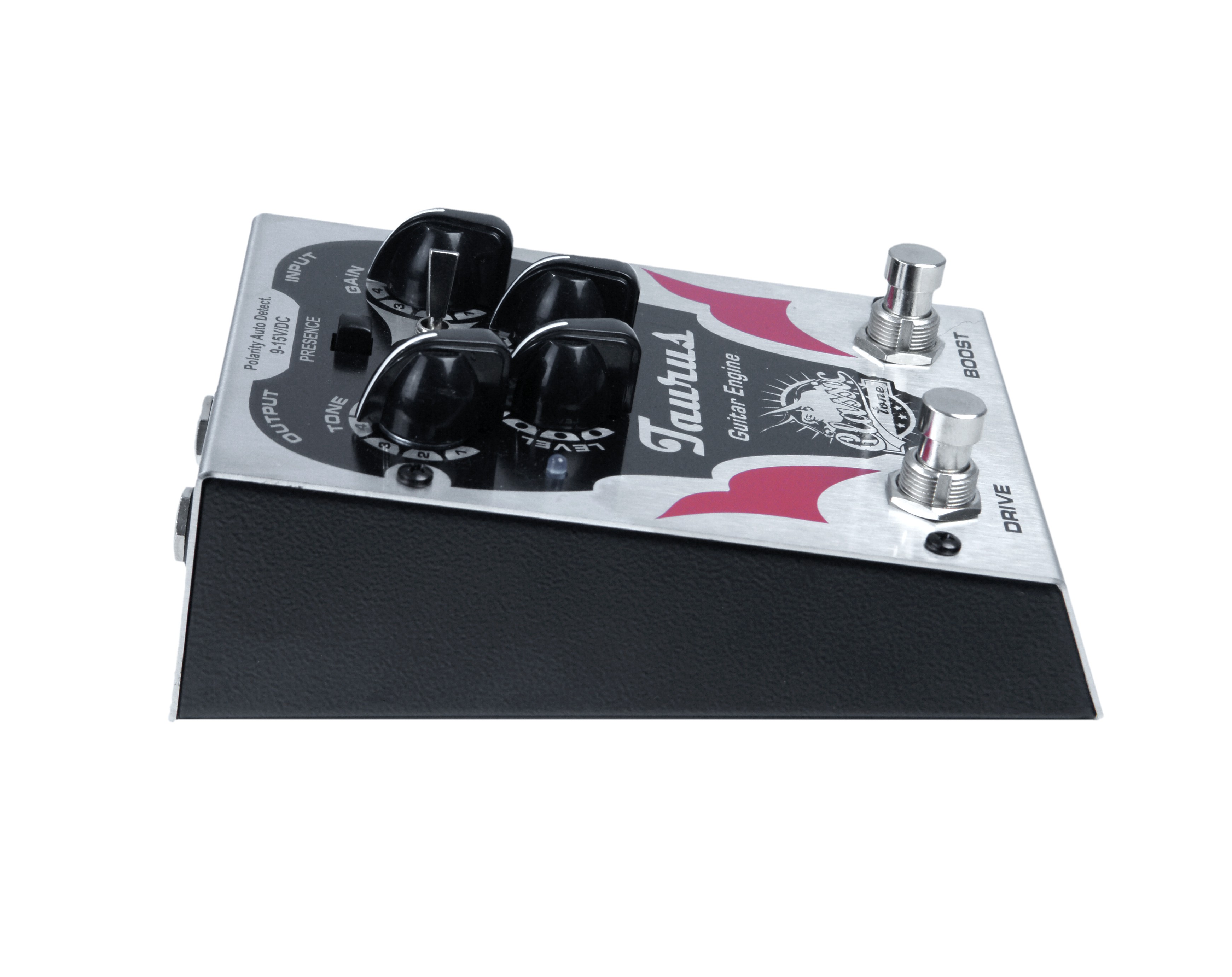

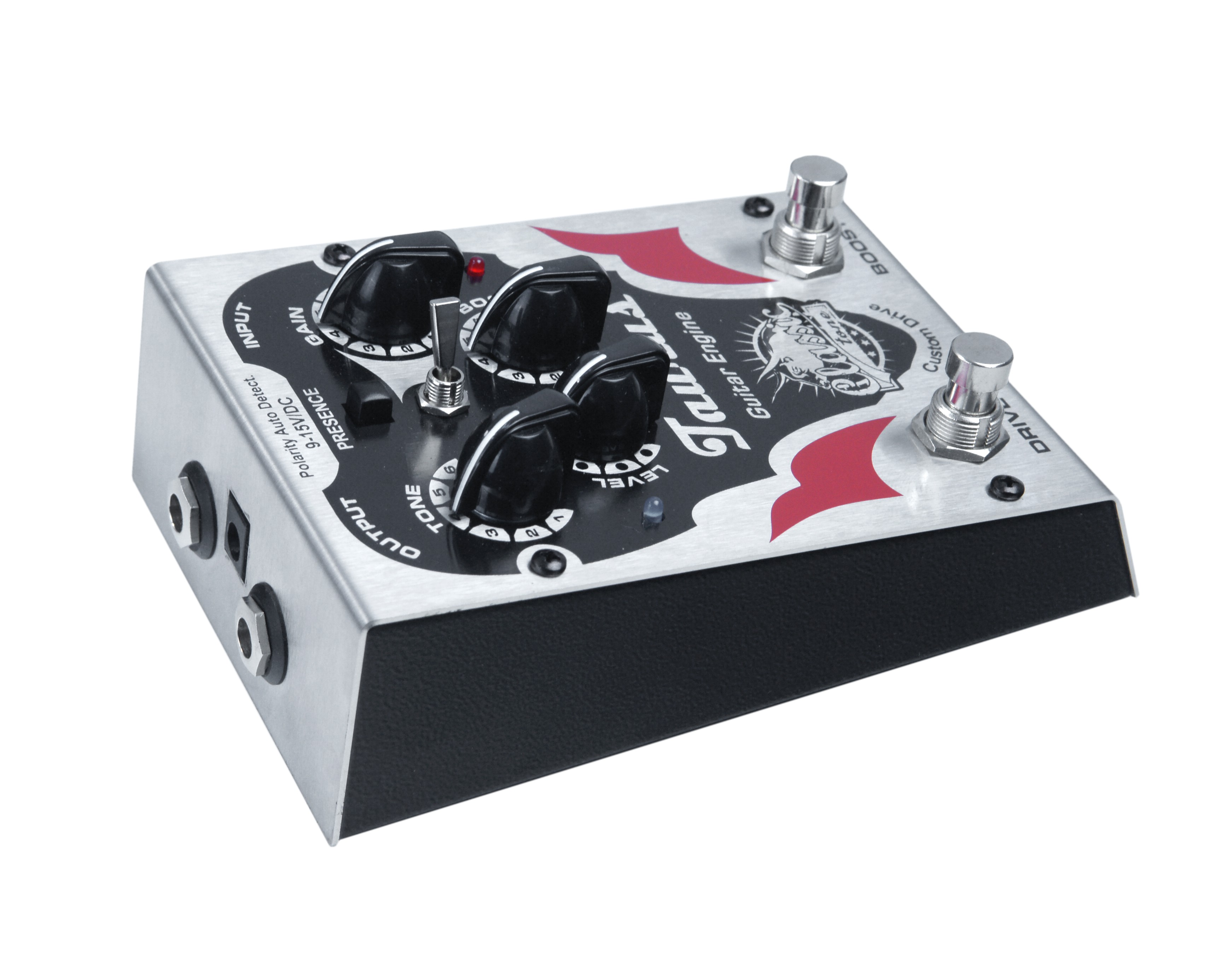

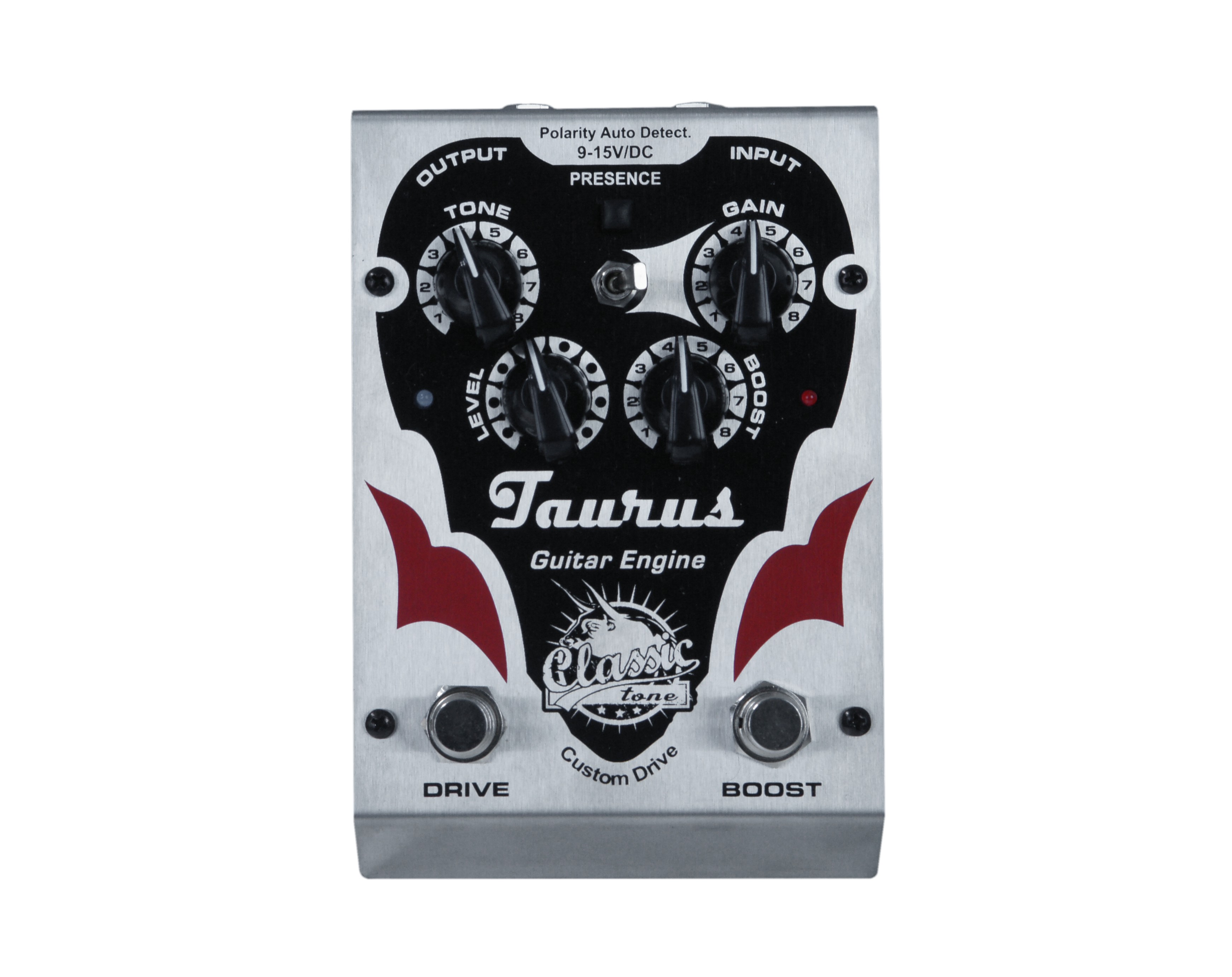

Two footswitches: DRIVE and BOOST
TONE - controls the output level of the pedal - from warm and smooth to bright and cutting.
GAIN - controls the amount of overdrive. This will take you from a bluesy crunch to compressed overdrive.
LEVEL - overall effect volume
BOOST- volume level adjustment , activated by BOOST foot switch
GAIN SWITCH - changes the nature of Drive:
- High dynamics with a moderate gain.
- High compression with a high gain
PRESENCE - switch
POWER SUPPLY VOLTAGE RANGE 9-15V: any power supply with power rating between 9 and 12V can be used
POLARITY AUTO DETECTION: allows using either centre-positive or negative polarity on power supply
DC ASSISTANT: protection against signal loss. If disconnected or the voltage is lower then 6V the effect is automatically switched to the "bypass" mode
DIMENSIONS: (H x W x D) 65 x 96 x 144mm
Designed by musicians for musicians
