Stomp-Head 7 as a pre-amp.
If you want to record your guitar or use the amplifier as a pre-amp without a cabinet then you have a special tool on board - an advanced loudspeaker simulator (IR-Cab simulation). You can choose accurate simulations of two types of speakers: Celestion Vintage-30 and Celestion Creamback. Also two types of cabinets with different dimensions - small and large can be chosen.
A simulation of the microphone position is also available and provides additional possibilities of equalizing the colour of your sound at the line output. Thanks to this solution you can get closer to the sound conditions of a classic set of speakers with a microphone setup. You get the right placement and sound of the instrument in the band's mix by transmitting the signal from the line output without using the speaker. All this is done in an analog way, very simple and intuitive, without the use other additional processors. The line output has two signals paths, with or without simulation. This feature also allows you to connect an external loudspeaker simulator. So you can use the built-in simulation, external simulation or both of them at once.
Power stage efficiency: 200Watt
Power output selector: 90W, 40W, 20W, 12W
Speakers impedance auto detection: 4,8 and 16ohm
2 channels: CLEAN+CRUNCH and LEAD
5 footswitches: CLEAN, CRUNCH, DRIVE, REVERB, BOOST

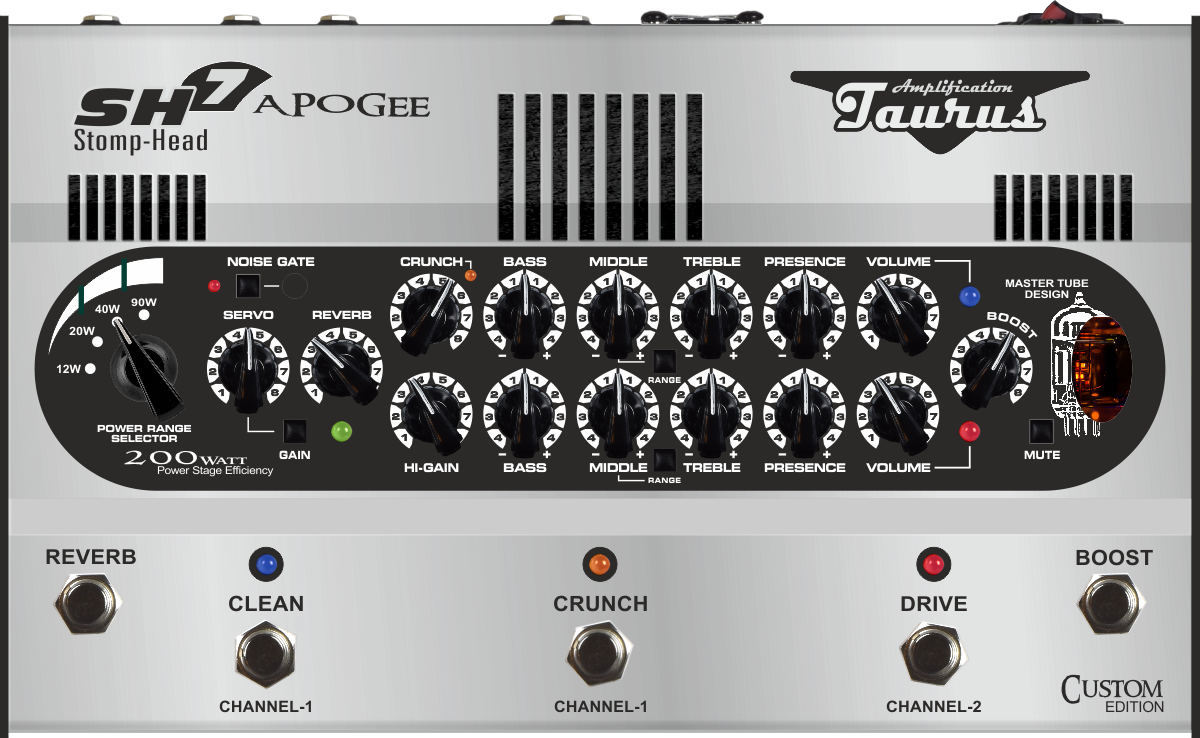

CHANNEL controls (CLEAN & LEAD):
GAIN, BASS, MIDDLE, MID-RANGE switch, TREBLE, PRESENCE, VOLUME
SERVO – analog enhancer level with SERVO GAIN switch
BOOST - access to set two different volume levels
input GAIN boost (switch +6dB)
RESONANCE – switch increasing the sound in the resonance range of the loudspeaker
Serial EFFECT LOOP

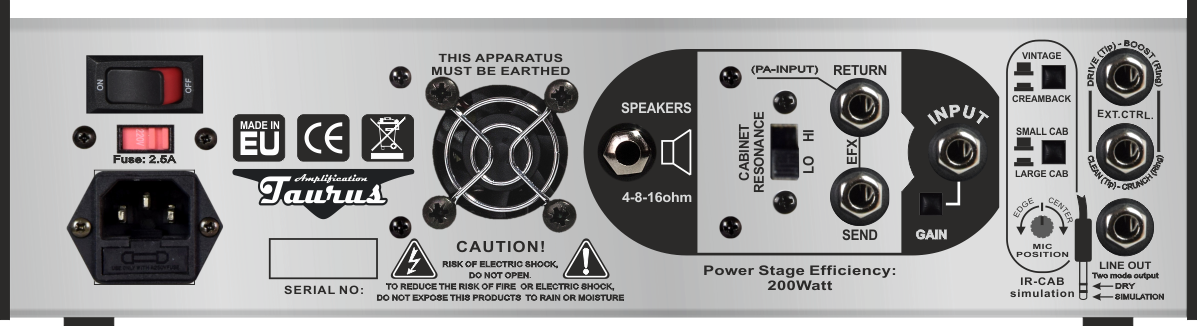

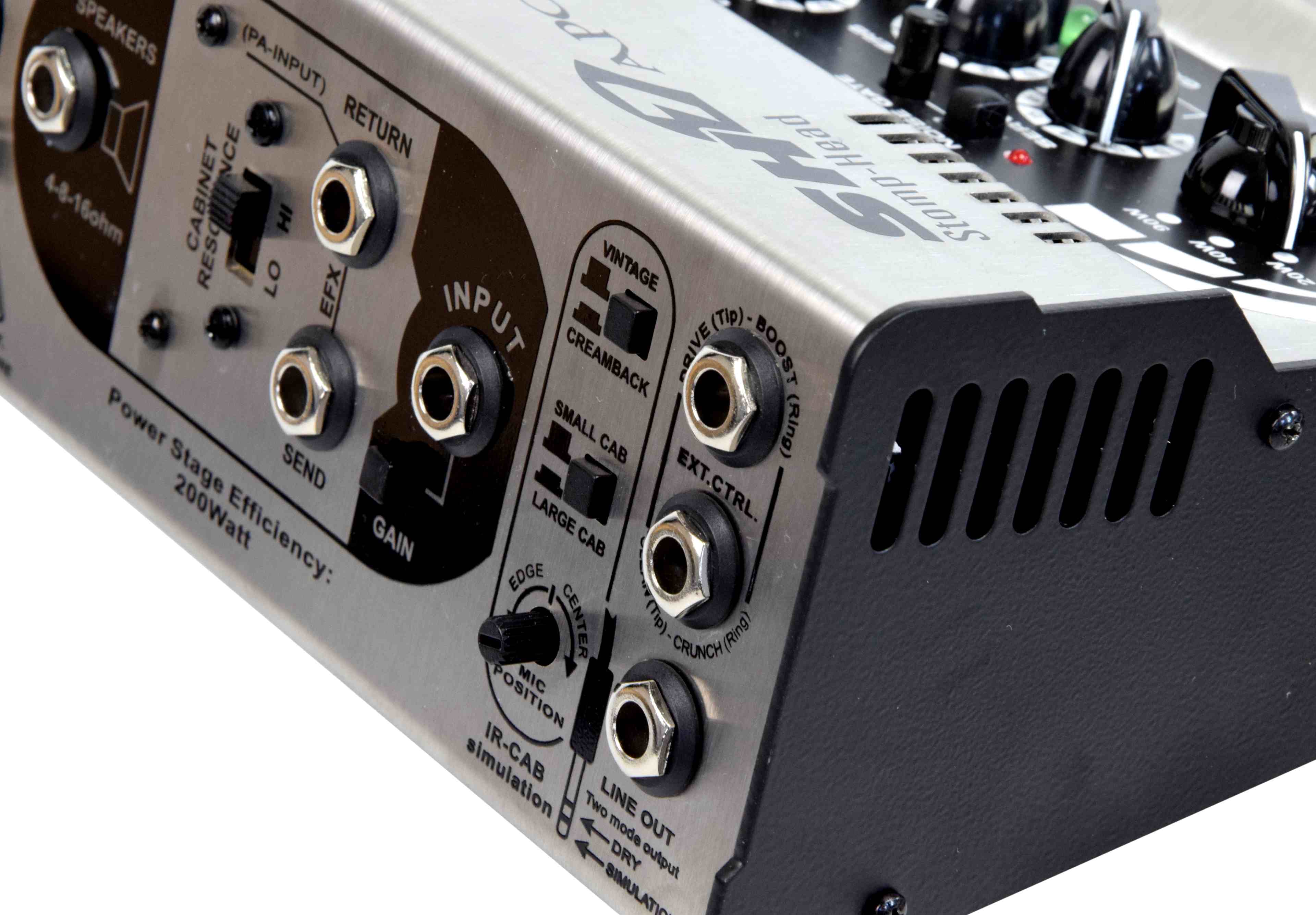

LINE OUTPUT with Speaker Simulation. Allows send linear signal with simulation (PIN) or without simulation (RING) or both simultaneously
EXTERNAL CONTROLLER INPUT for channel selector and BOOST
Voltage selector 230V/50Hz or 115V/60Hz
Dimensions: (H x W x D) 90 x 330 x 205 mm
This compact amp delivers enough loudness level for any stage size.
You can use Stomp-Head as a preamp without connection to cabinet.
2-types of speakers: Celestion Vintage-30 and Celestion Creamback.
Adjustment for microphone position.
Clean, Crunch, Drive, Boost and Reverb.
