PRICES:

BASIC-set > Volume, Blend, Bass, Treble: 120EUR

MID-set > Volume, Blend, Bass, Treble, Passive TONE/Middle : 134EUR
FULL-set > Volume, Blend, Bass, Treble, Passive TONE/Middle, Punch: 144EUR

Kup Teraz

Koszyk

Specyfication

Taurus TM On Board preamps are designed for installation in a bass guitar. It is the modular design for easy configuration of controllers. The Integral version uses stacked potentiometers that operate two functions with staked knobs, saving space for mounting a preamp in the guitar.
Installation is very simple, it only requires soldering the pickups and power supply. The modules are connected to each other with a flat cable with connectors, which is included to the set.

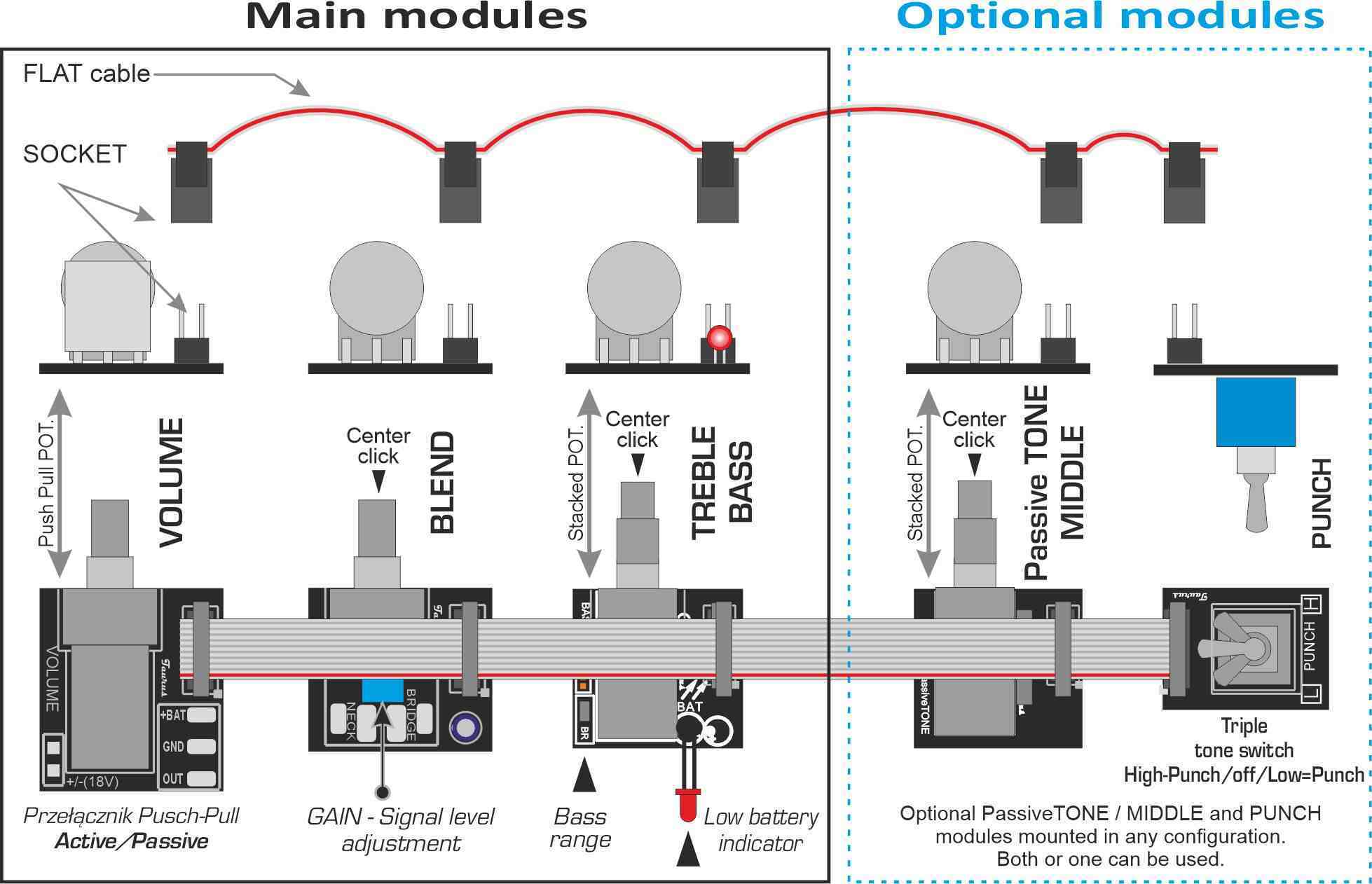

The pre-amp contains three main modules VOLUME, BLEND, BASS /TREBLE with dual push-pull potentiometer.
Two optional modules: Passive TONE/MIDDLE and PUNCH can be use in any possible configuration or not at all.
The modules (Pre-amp and optional) are designed to be easily joined together by the flat connecting wire (No soldering required). The sequence of connected modules is unrestricted.

The Taurus pre-amps can be powered ether by one or two 9V batteries. The two battery option (18V) is recommended for greatest dynamic range.

On board pre-amps could work on low battery power (3-4V) but would compromise sound quality by its loss of dynamic and consequently, distortion. To prevent this, Taurus pre-amps are built with a Low Battery LED Power Indicator, signaling replacement time.

Taurus recommends installing the LED indicator on the back cover plate of the instrument, eliminating the need for additional connections and adapters. Simply secure the LED (3mm diameter) in the designated opening of the back cover.

The preamp can operate in two modes, passive and active. All controls work in active mode, and VOLUME, BLEND, Passive TONE controls work in passive mode. The operating mode switch is integrated with the VOLUME potentiometer.

In general, the preamps in TM and TM-Integral versions are the same. The sound is the same. The difference is the use of push-pull or stacked potentiometers for tone control in the Integral version. This version is also equipped with passive tone control.

Back

TM Integral Stacked - Onboard bass preamps

Modular design

VOLUME control
Pickups BLEND control
BASS control: 40Hz +/-10dB @MLO 550Hz -/+5dB
it is possible to change it to 80Hz by bridge on PCB
TREBLE control: 8kHz +12dB/-14dB
MIDDLE control: 2kHz +8dB, 800Hz -8dB
Passive Tone control in passive mode
PUNCH tone with triple micro-switch:
Punch Low: 300Hz +7dB
Punch High: 600Hz +7dB
ACTIVE/PASSIVE mode switch integrated with the VOLUME pot.
Subsonic low-pass filter
Low battery indicator
9V or 18V supply
Current supply consumption:
2,7mA @ 9V main configuration
3,1mA @ 9V maximum configuration
The operating time on a 500mAh alkaline battery is approx. 160-hours.

CONFIGURATION TM INTEGRAL STACKED:

BASSIC set:

VOLUME BLEND, BASS, TREBLE.

MID set:

VOLUME, BLEND,BASS, TREBLE,Passive TONE/MIDDLE

FULL set:

VOLUME, BLEND, BASS, TREBLE, Passive TONE/MIDDLE, PUNCH,
