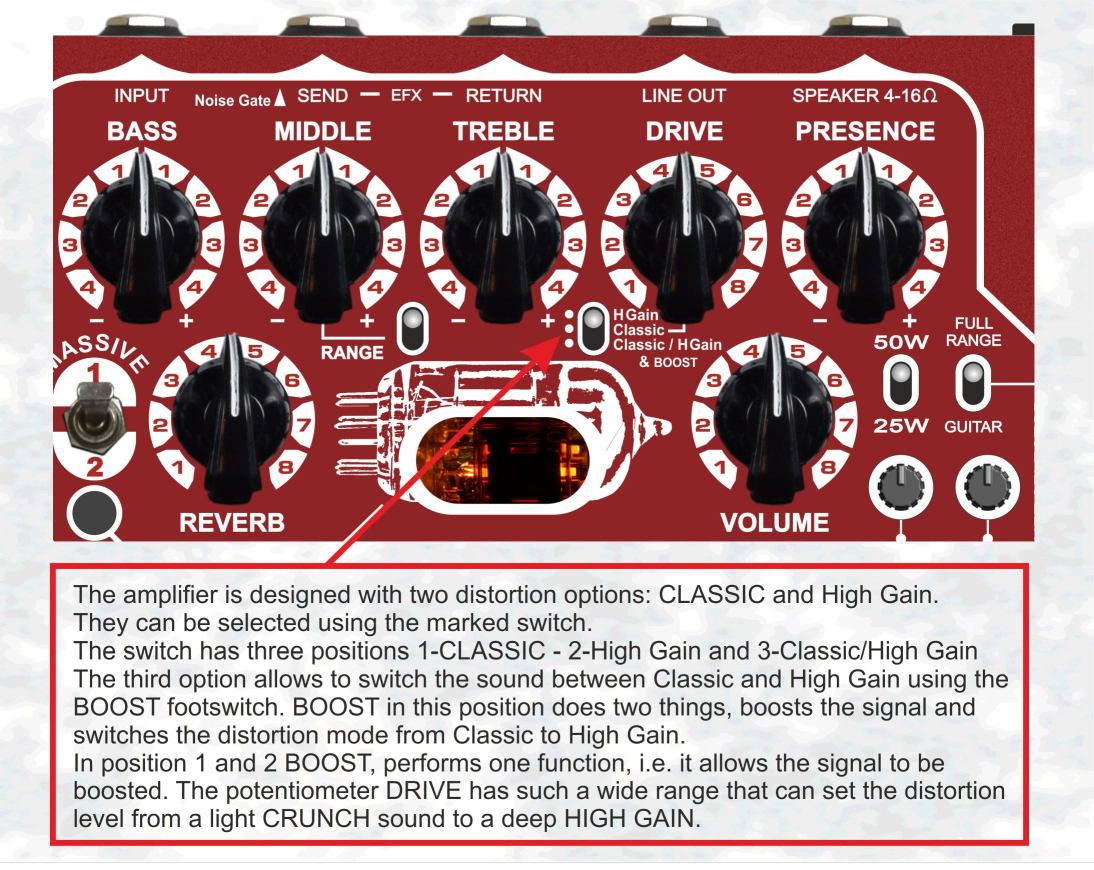

SH8.Qube  is available in CUSTOM version as well. The custom version is equipped with additional mode switch for CLASSIC DRIVE & HIGH GAIN DRIVE.
Click here to order CUSTOM VERSION.

Manual

Promocja

Stomp Head 6 Taurus SH6
Taurus SH6
Stomp-Head 8 Taurus SH8

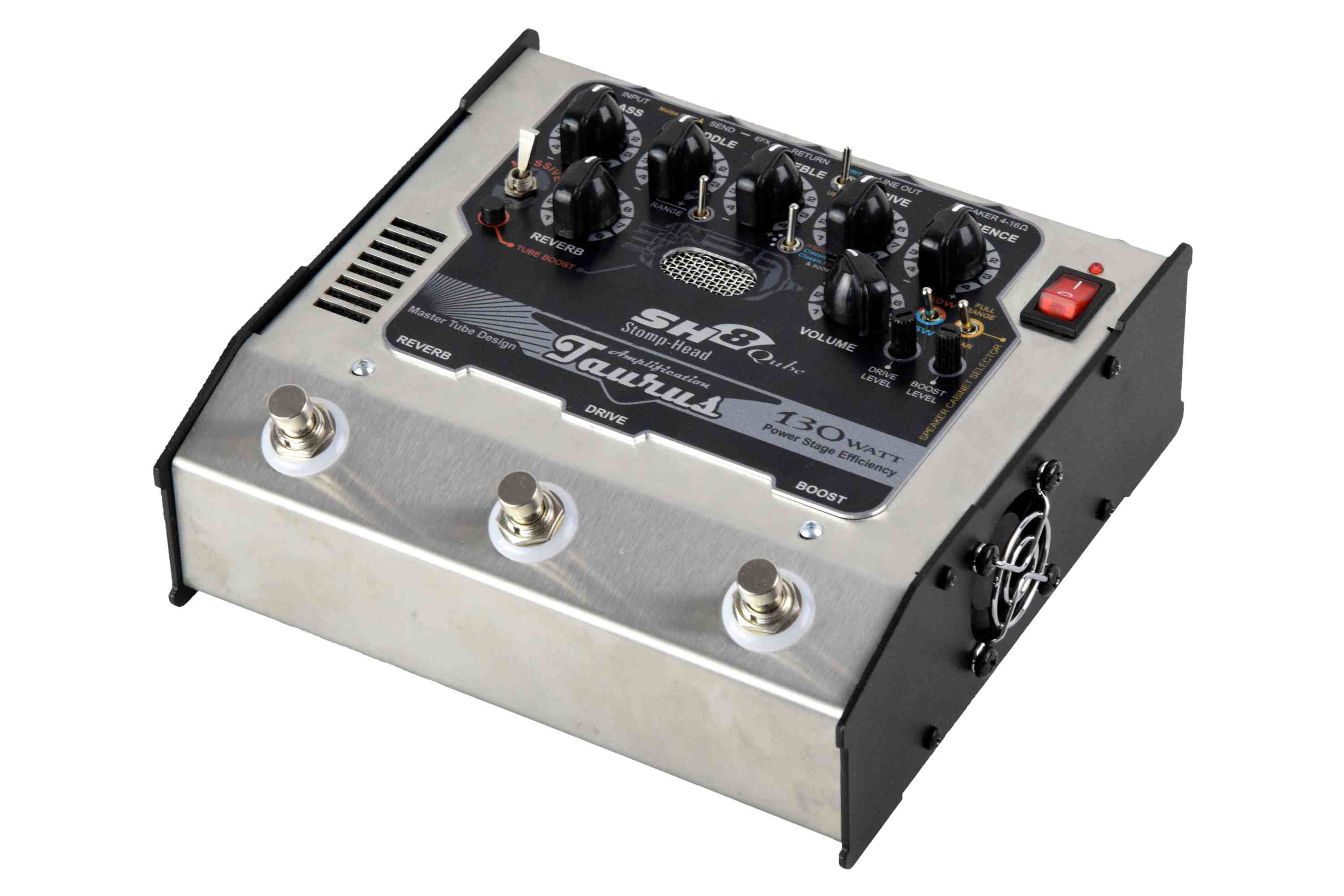

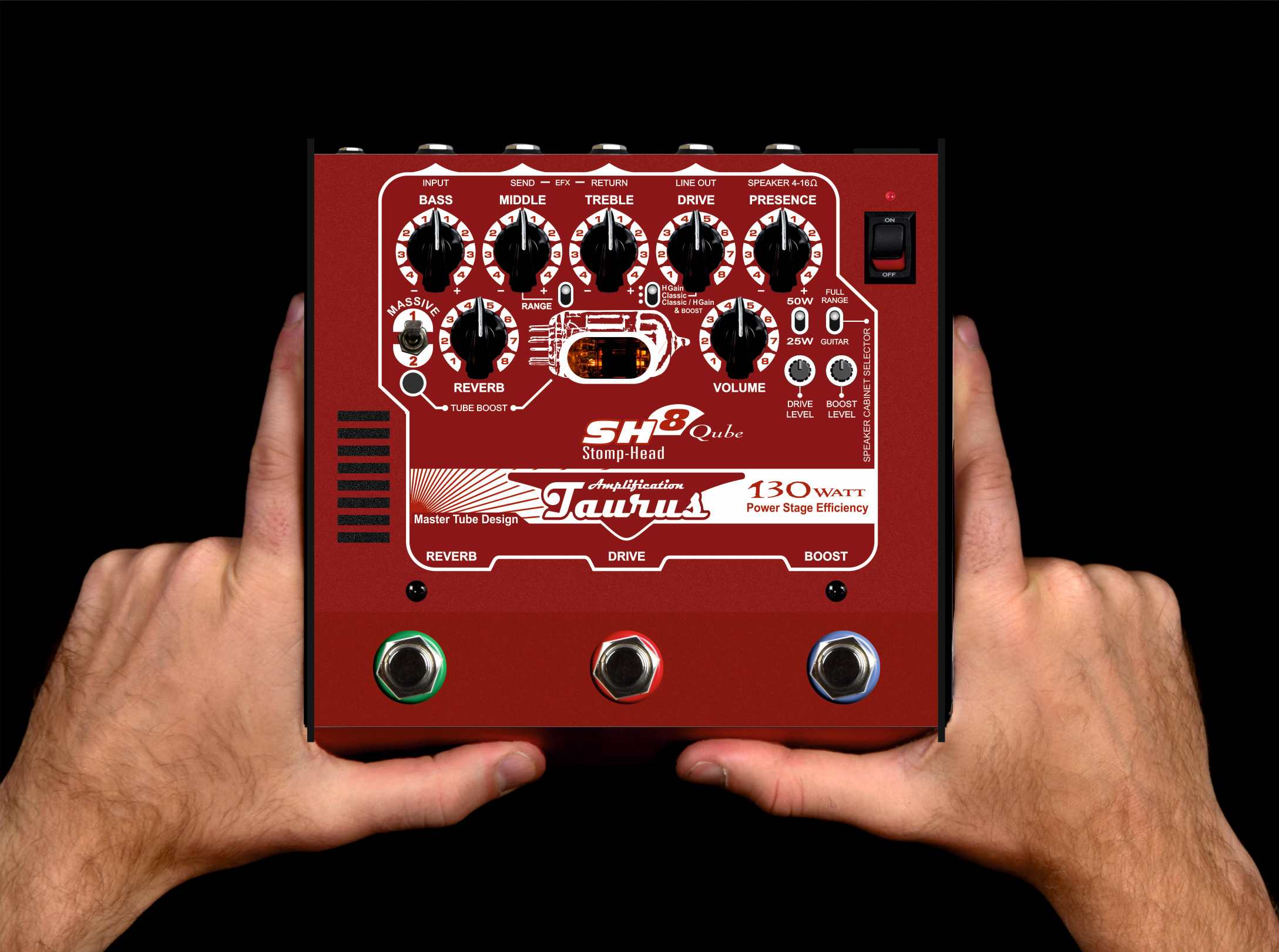

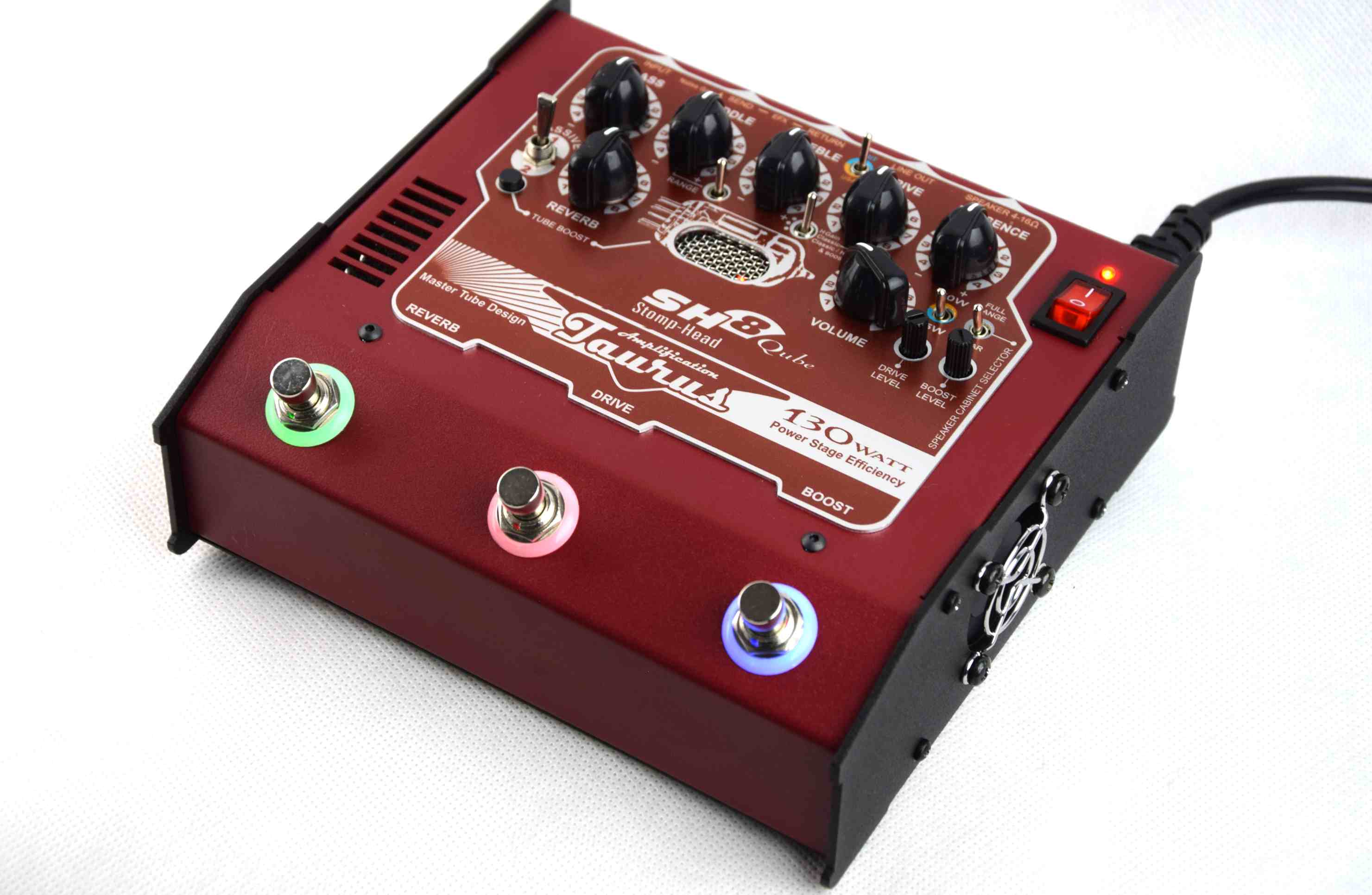

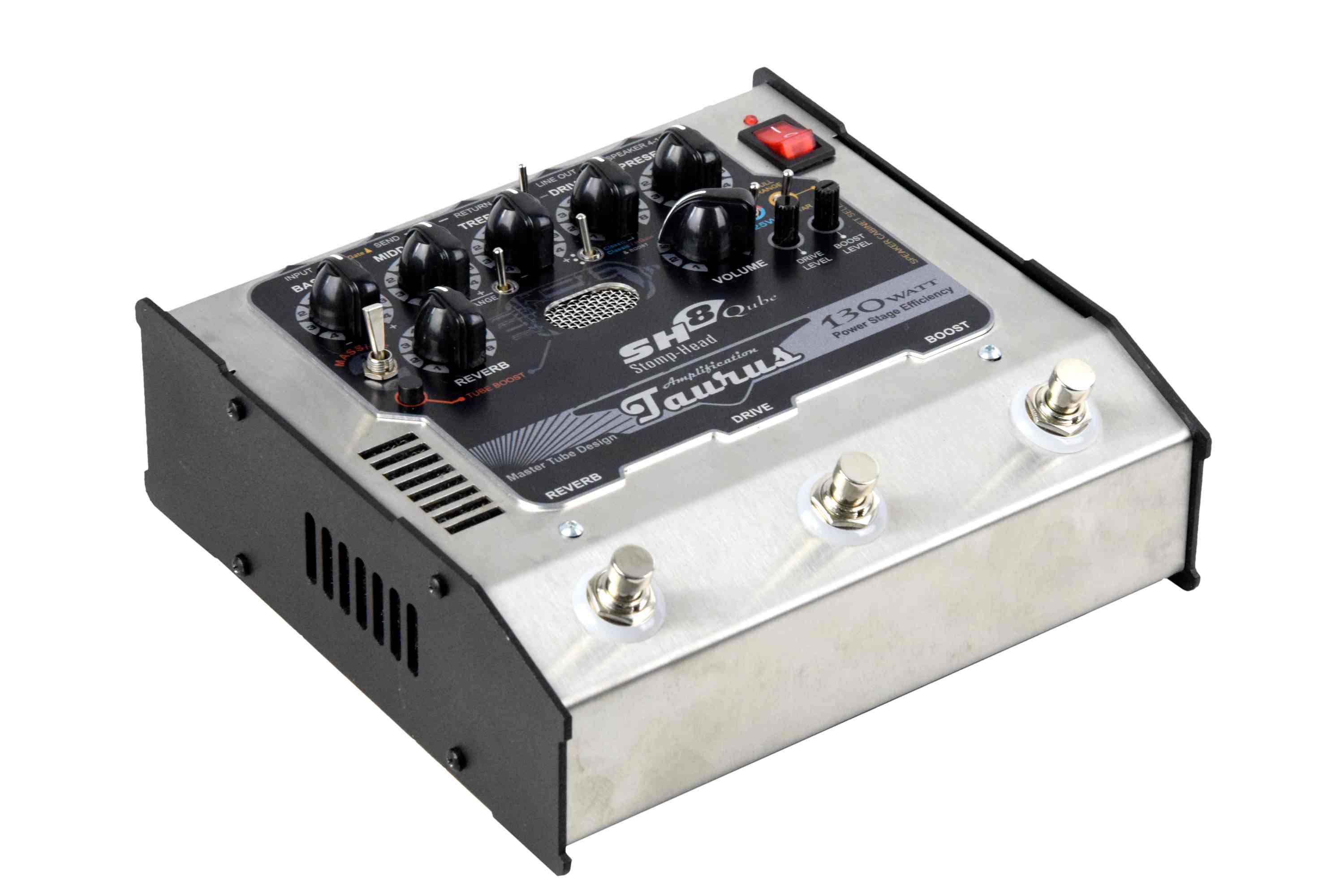

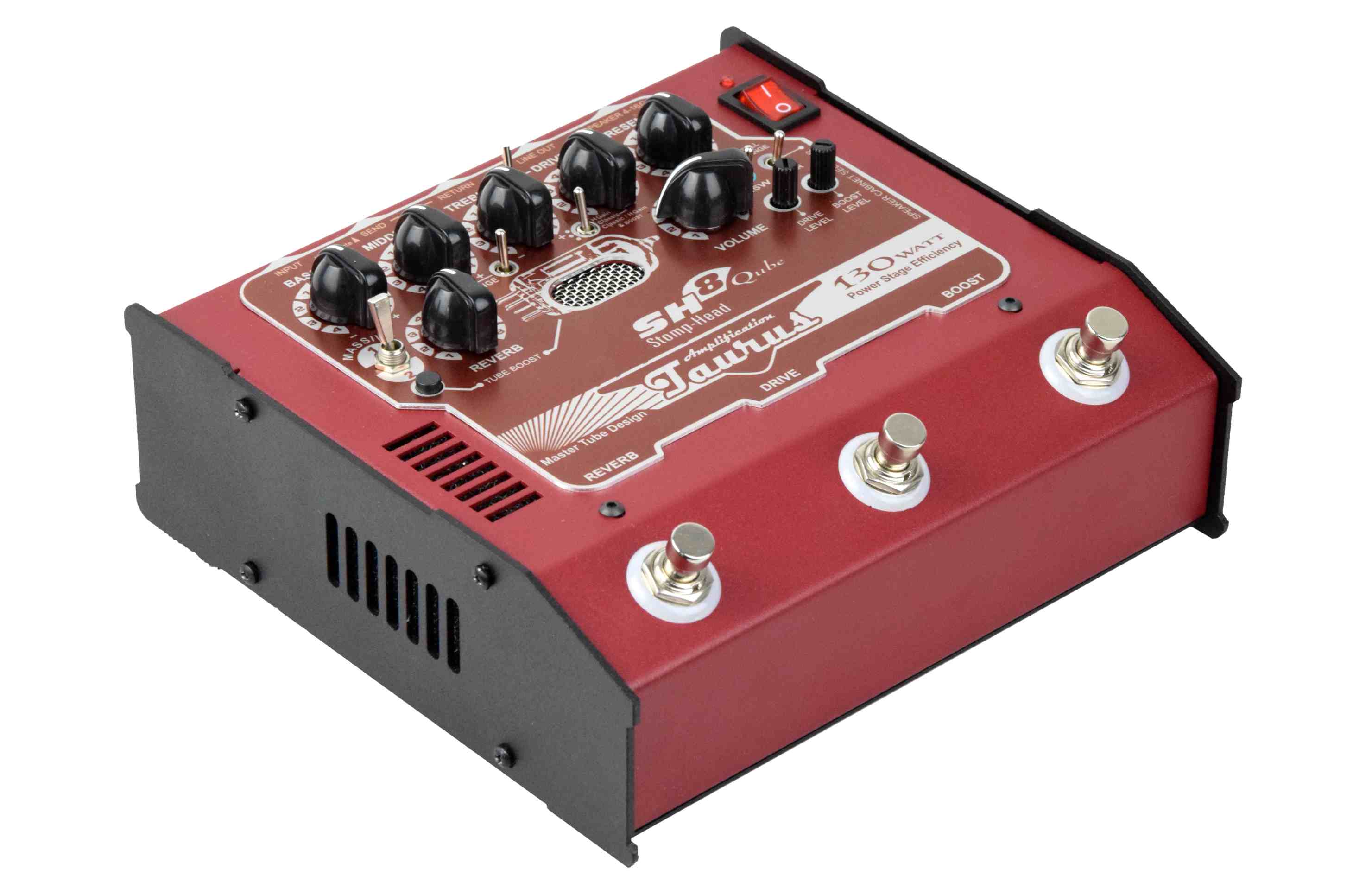

SH8.Qube - Tube Guitar Amplifier

Four in one:

Analog amplifier made in Master Tube Design technology.

The amplifier is equipped with a 2-way power output selector.

It allows you to use speaker cabinets of any size, power and impedance.

The following power options are available:

25W and 50Wat


The amplifier automatically adjusts its
operating parameters and can serve 4, 8 and 16 Ohm cabinets.

If you want to record your guitar or use the amplifier as a pre-amp without a cabinet then you
have a special tool on board, an advanced loudspeaker simulator.

Signal from Line-out can be lead
in different ways:
with simulation, without simulation or both.

The amplifier is equipped with a unique feature that allows to connect both a guitar cabinet and
a full-range PA or Hi-Fi cabinet.

By using a full-range column, you will get a sound with Celestion Creamback speaker simulation.



Celestion Creamback speaker simulation is also used on the line output.


When using the line
output, you can use it in different ways: using a signal with simulation, without simulation, or mix both signals together.

3-footswitches to access for the following options:



Clean/Drive, Boost, Reverb.

Custom Guitar amplifier
Guitar preamp
IR CAB SIM
Floor amplifier

Foot Controller

Clean/Drive, Boost, Reverb.

Cabinet Simulator

Allows you to connect a guitar speaker or full range PA cabinet.

Preamp

You can use Stomp-Head as a preamp without connection to cabinet..

Amplifier

Master Tube Design technology. 130W power section with 50W and 25W real power selector.

Buy now

floor amplifier

Specification:

•    Power stage efficiency: 130Watt
•    Power output selector: 50W, 25W
•    Speakers impedance auto detection: 4,8 and 16ohm
•    Tubes: 12AX7 / ECC83
•    2 channels: CLEAN and DRIVE
•    3- footswitches: REVERB, CLEAN-DRIVE and BOOST

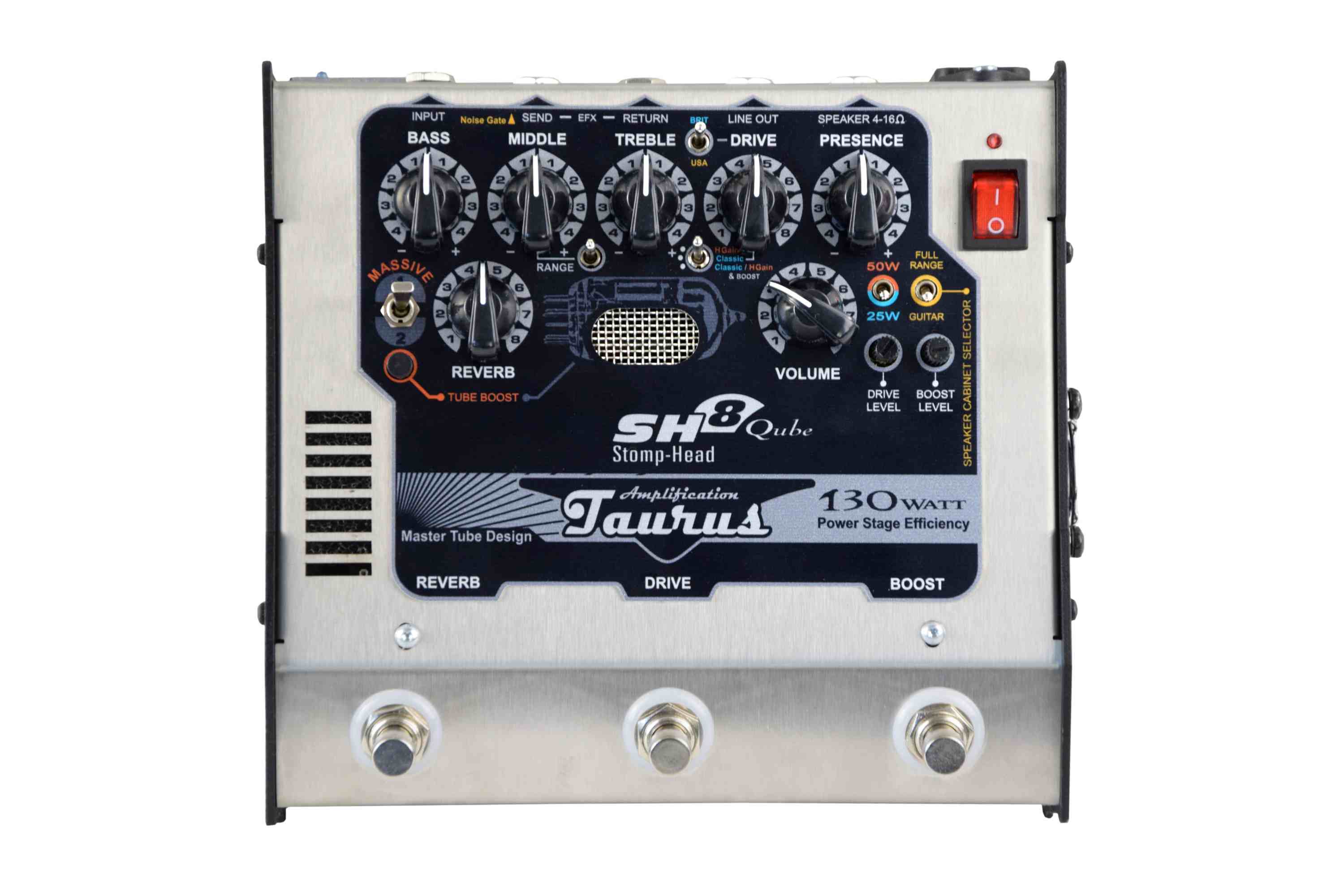

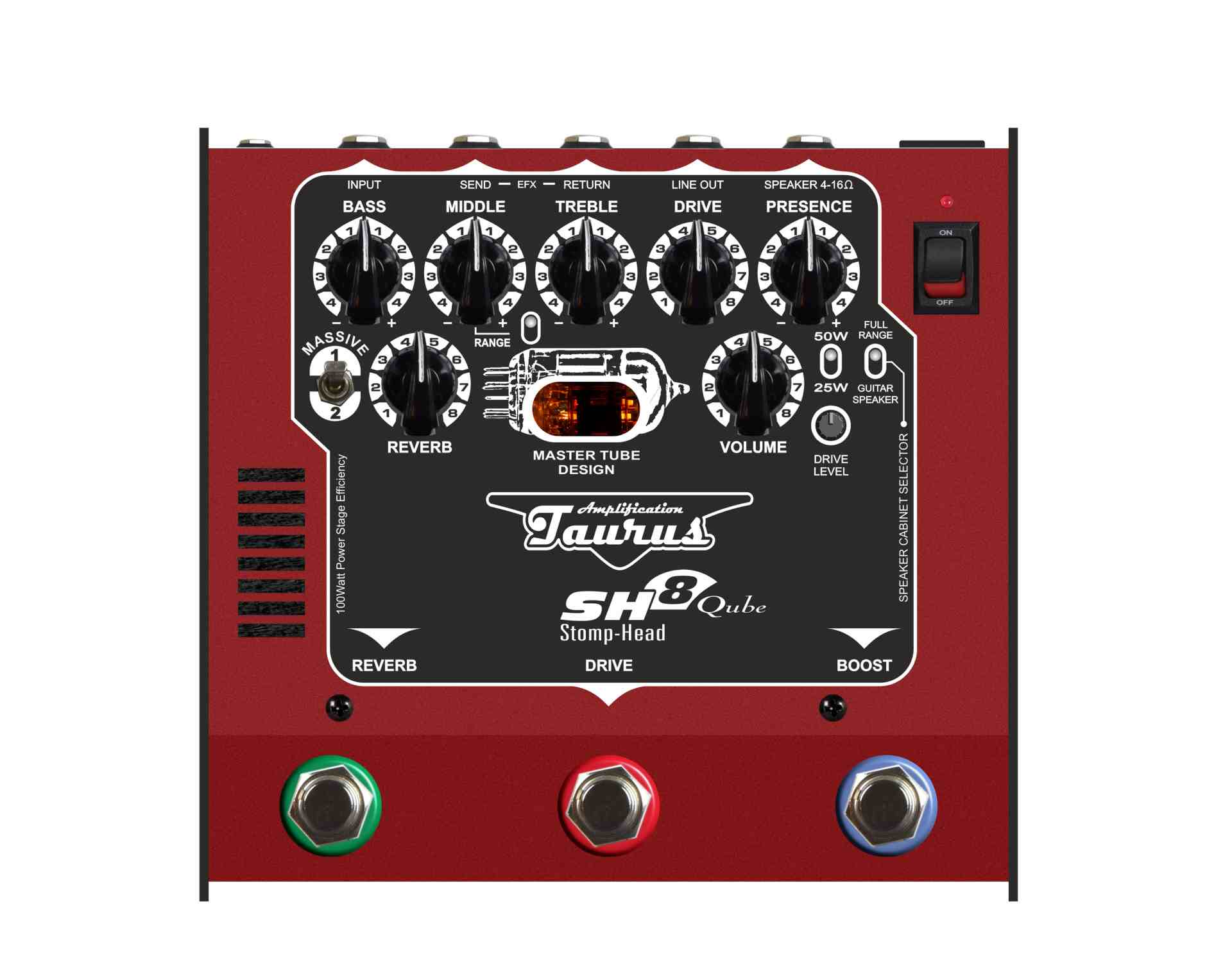

•    CONTROLS:

BASS, MIDDLE + RANGE switch, TREBLE, PRESENCE, DRIVE , DRIVE LEVEL,  REVERB, VOLUME

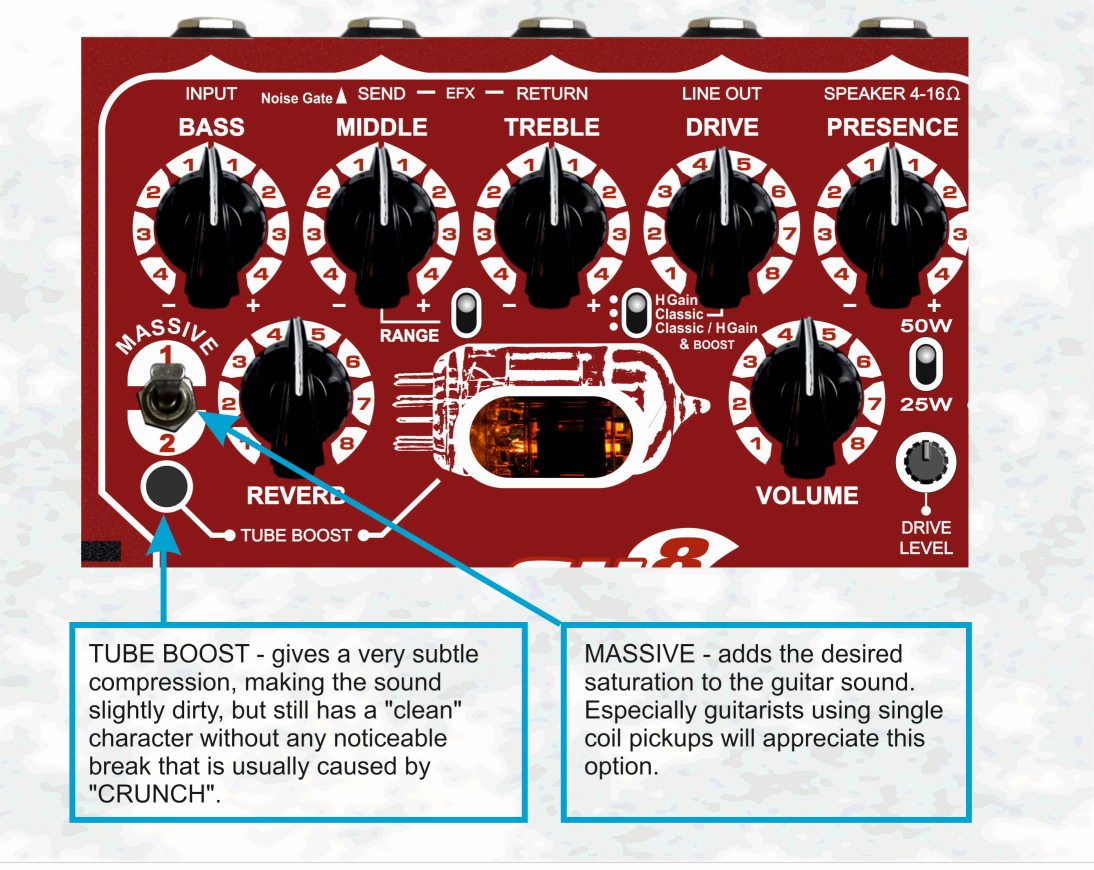

•    MASSIVE – sound saturation

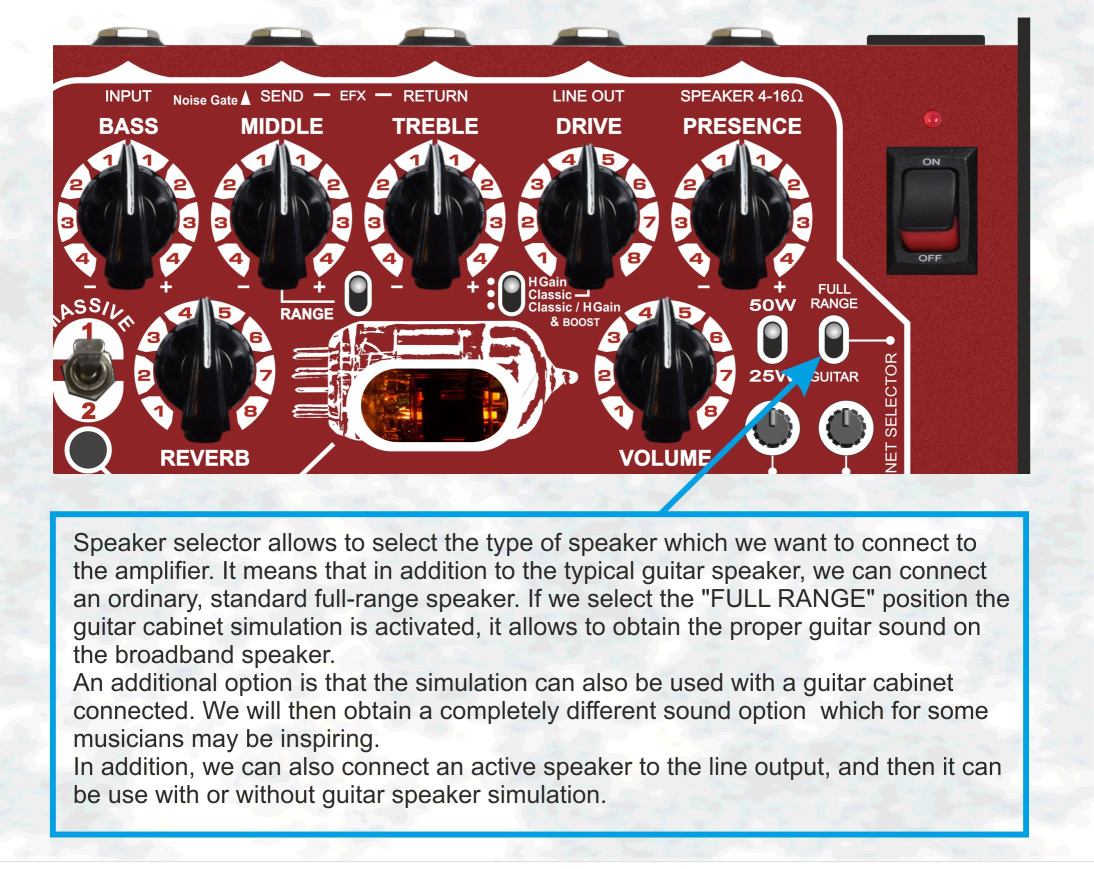

•    SPEAKER CABINET SELECTOR:  guitar cabinet / full range passive cabinet
•    BOOST increases output signal level and makes sound slightly "crunchy".
•    Serial EFFECT LOOP
•    LINE-OUT with Speaker Simulation. Allows send linear signal with simulation

(PIN) or without simulation (RING) or both simultaneously

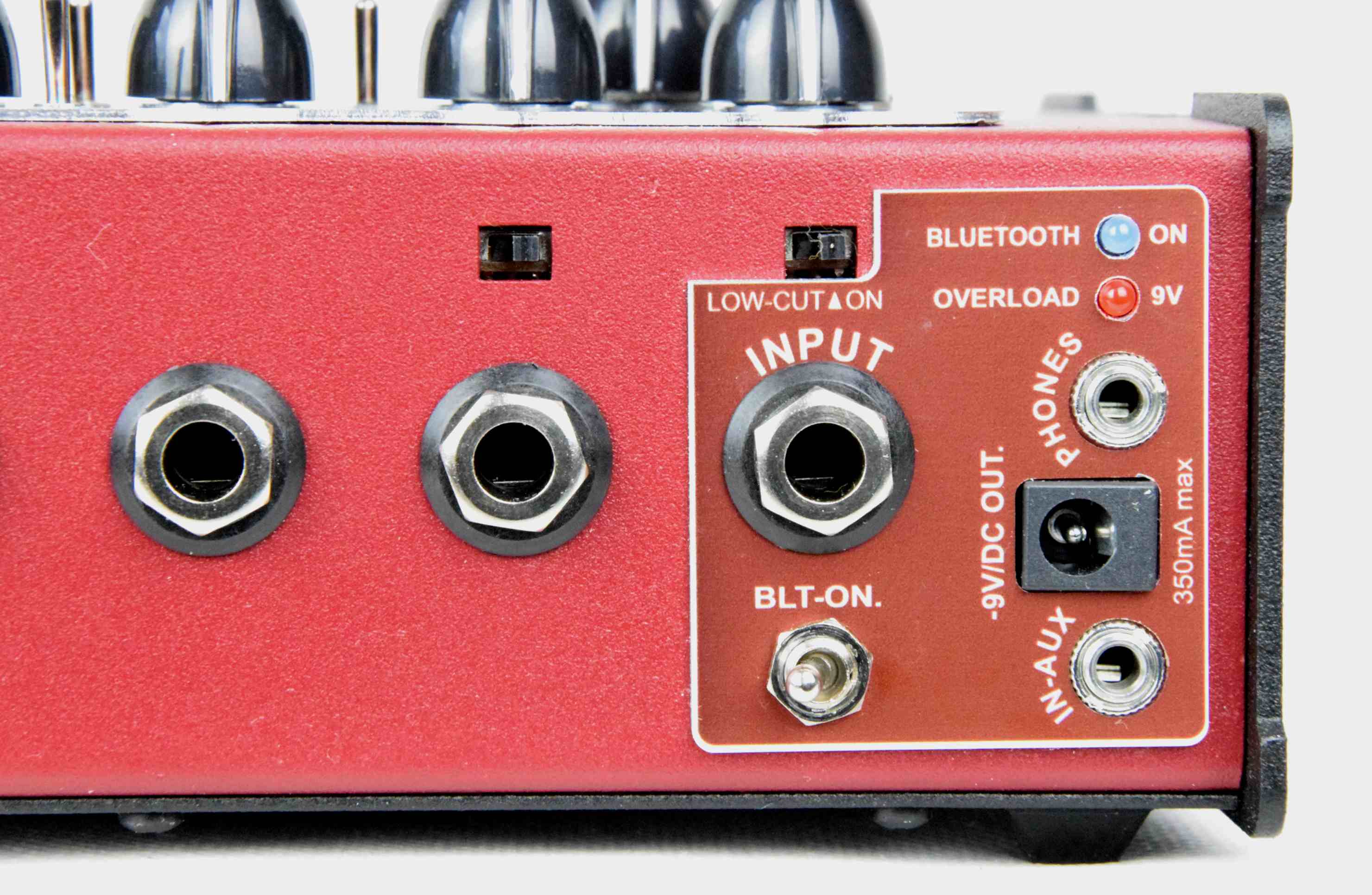

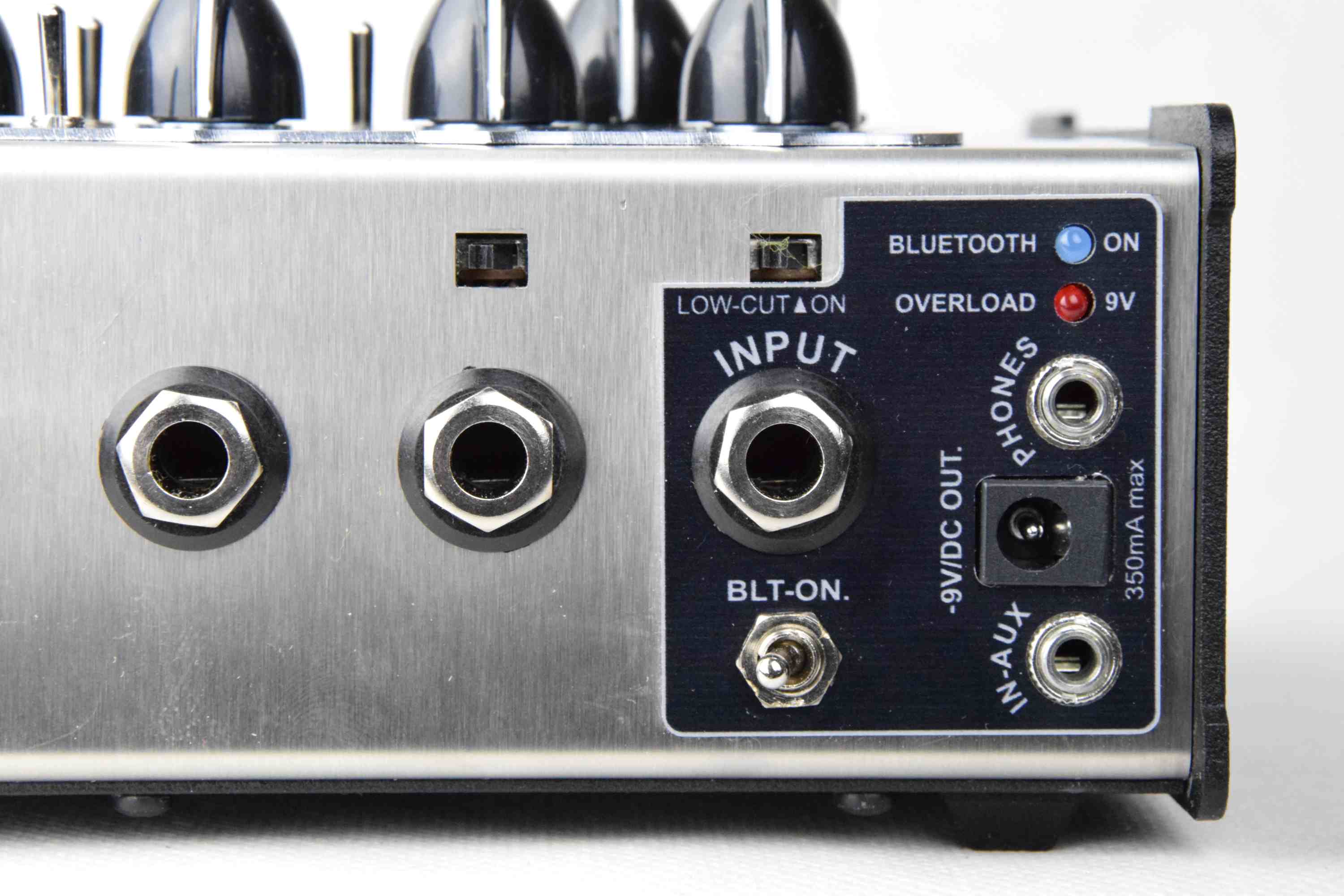

•    PHONES output
•    AUX-IN  for phones section
•    BLUETOOTH the ability to play background music from the phone, etc.
•    Power supply for effect pedals:  9V/300mA output
•    Main power suplply range: 90-240V
•    Housing dimensions: (H x W x D) 60 x 185 x 175 mm
•    Overall dimensions: (H x W x D) 78 x 185 x 175 mm
•    Weight: 1,5kg

MTD

Instrukcja

733EUR

Compare amplifiers

Read more

Stomp-Head 8.Qube

Taurus compact guitar amplifier ,Taurus floor guitar amplifier , Taurus floor amp , tube guitar amplifier , Taurus Stomp Head SH8Qube, StompHead 8, Taurus SH8, Taurus Taurus SH8.Qube

Ultralight 130W analog guitar amp.

Master Tube Design Technology.

DRIVE, BOOST, REVERB, SPEAKER CABINET SIMULATOR, PHONES OUT, AUX-IN, AUX-LOOP, Power supply for effect pedals -9V/DC, BLUETOOTH.



The amplifier is distinguished by the excellent sound characteristic of tube amplifiers.
The amp has an exceptionally friendly sustain and tube compression. It perfectly shapes the tone and makes it easy to play while maintaining proper articulation while playing. The MASSIVE and BOOST makes a guitarist-friendly sound saturation and a kind of rapacity.
The amplifier is equipped with a unique feature that allows to connect both a guitar cabinet and a passive full-range PA or Hi-Fi cabinet to the SPEAKER-OUT. The analog module with the SPEAKER CABINET SELECTOR switch  is used for this purpose.

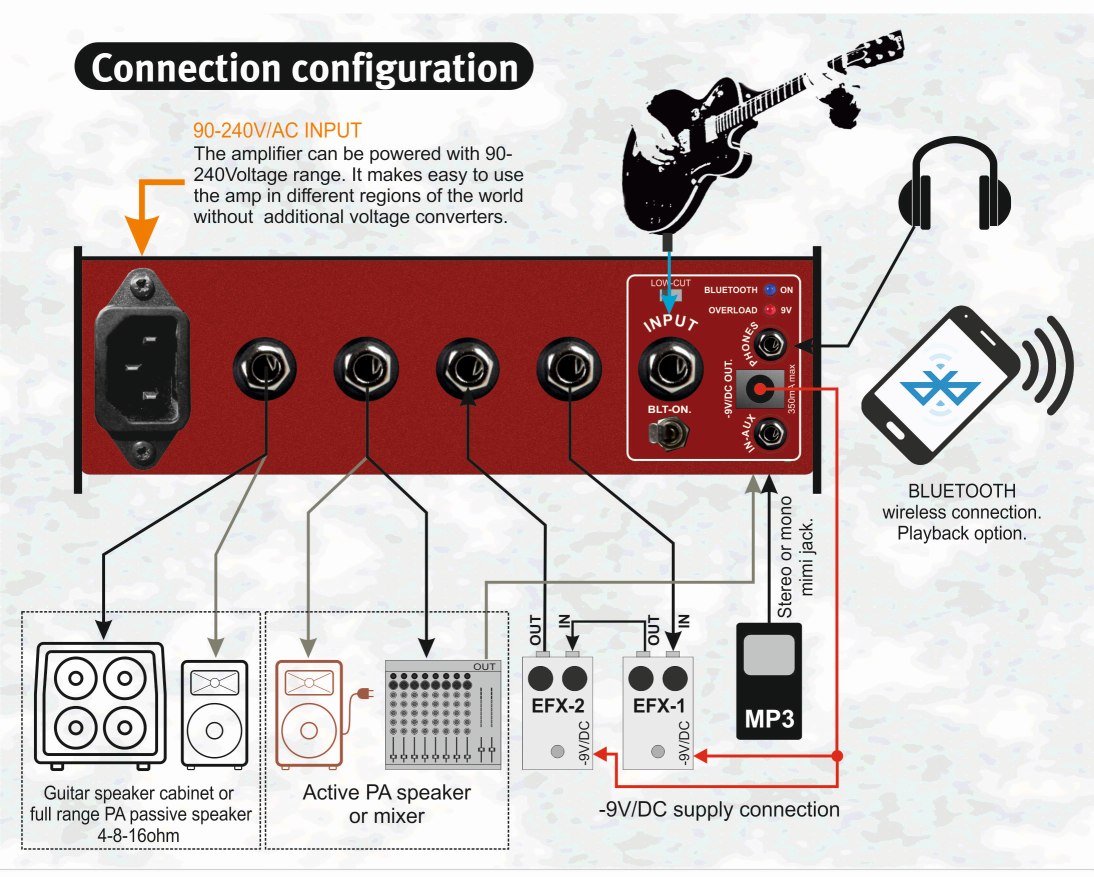

SH-8.Qube can be used in various configurations:

- as a classic amplifier. There are 2 power levels to choose from:
25W and 50W.
- as a preamp connected directly to the mixer and PA system using the built-in speaker cabinet simulation.
The amplifier can be used without connecting a speaker. If a speaker cabinet is not connected, the power stage of the amp is not active.







Additional options include AUX input, Headphone Output and BLUETOOTH. This allows to practice with background music or perform solos with musical accompaniment.
If the broadband cabinet is used, the signal from the background music will be reproduced naturally (wide-band) and the guitar will join the backing track with its own path with a guitar cabinet's sound characteristic.


Stomp-Head SH8.Qube is a fully analog design devoid of digital simulation factors based on our own Master Tube Design technology.
The amplifier is extremely easy to use and contains everything that is necessary in the guitarist's workshop.
If you are looking for amplifiers with very small dimensions and weight, and at the same time you care about the excellent sound characteristic of tube amplifiers, the SH8.Cube will be the perfect choice.


Amplifier power matter. Like all Stomp-Head designs of the Taurus, the power amplifier has twice as much power reserve than is actually used. This is to prevent the power stage from over-driving and to obtain the right dynamics (headroom) when playing at its full power. Thanks to this, the amp always plays with the same power at different speaker impedance: 4.8 and 16ohm.
In the case of SH8, the efficiency of the power stage is 130W and its real volume is the same as in the case of a 50W traditional tube amplifier.
