Power output: 350W RMS / 4ohms, 200W RMS / 8 ohms
XLR inputs: 100 kohms (balanced) suitable for microphone or instrument with balanced output.
JACK inputs: 1Mohm (unbalanced) - universal, suitable for instruments with active and passive pick-ups.
PHANTOM - 48V condenser microphones power supply

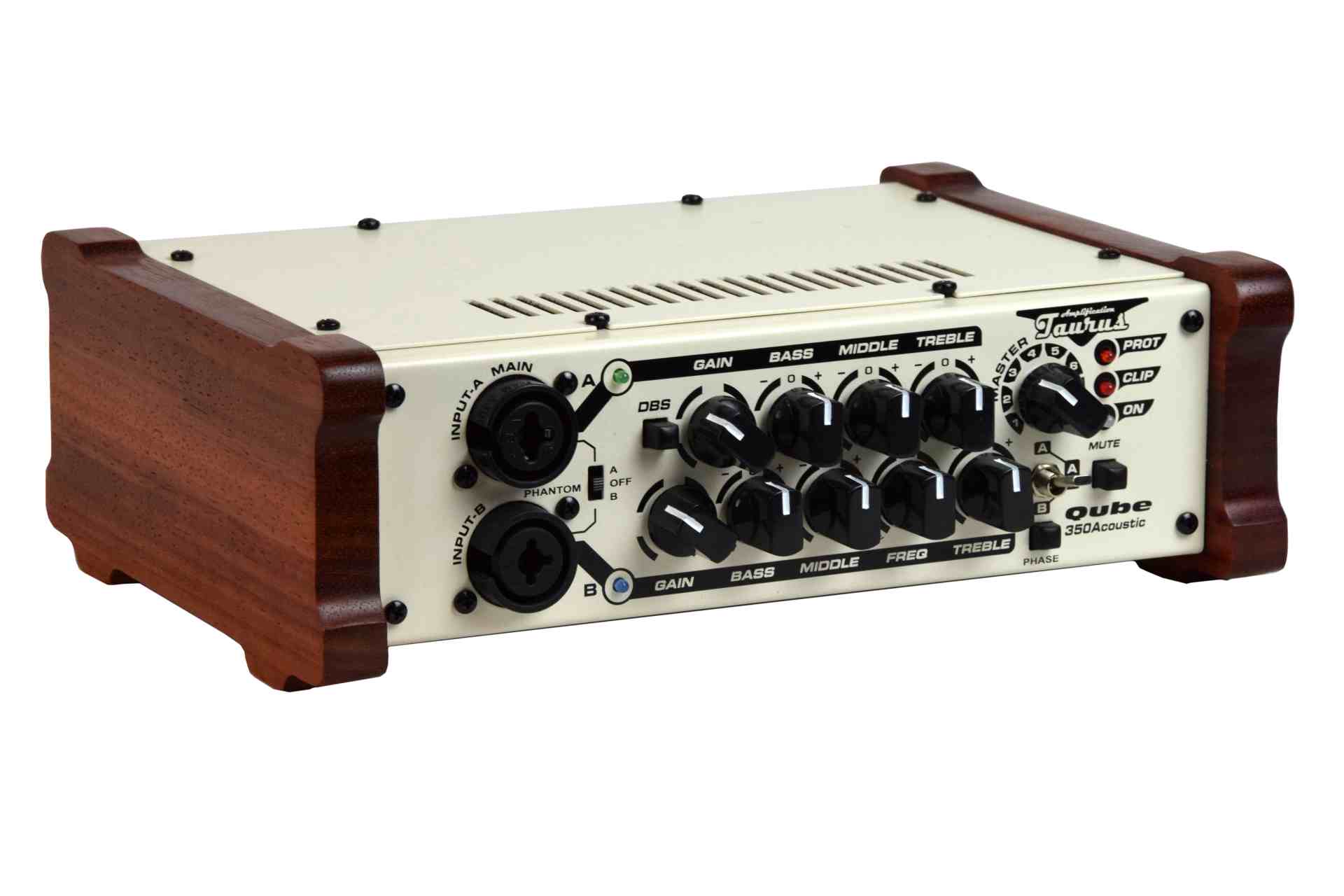

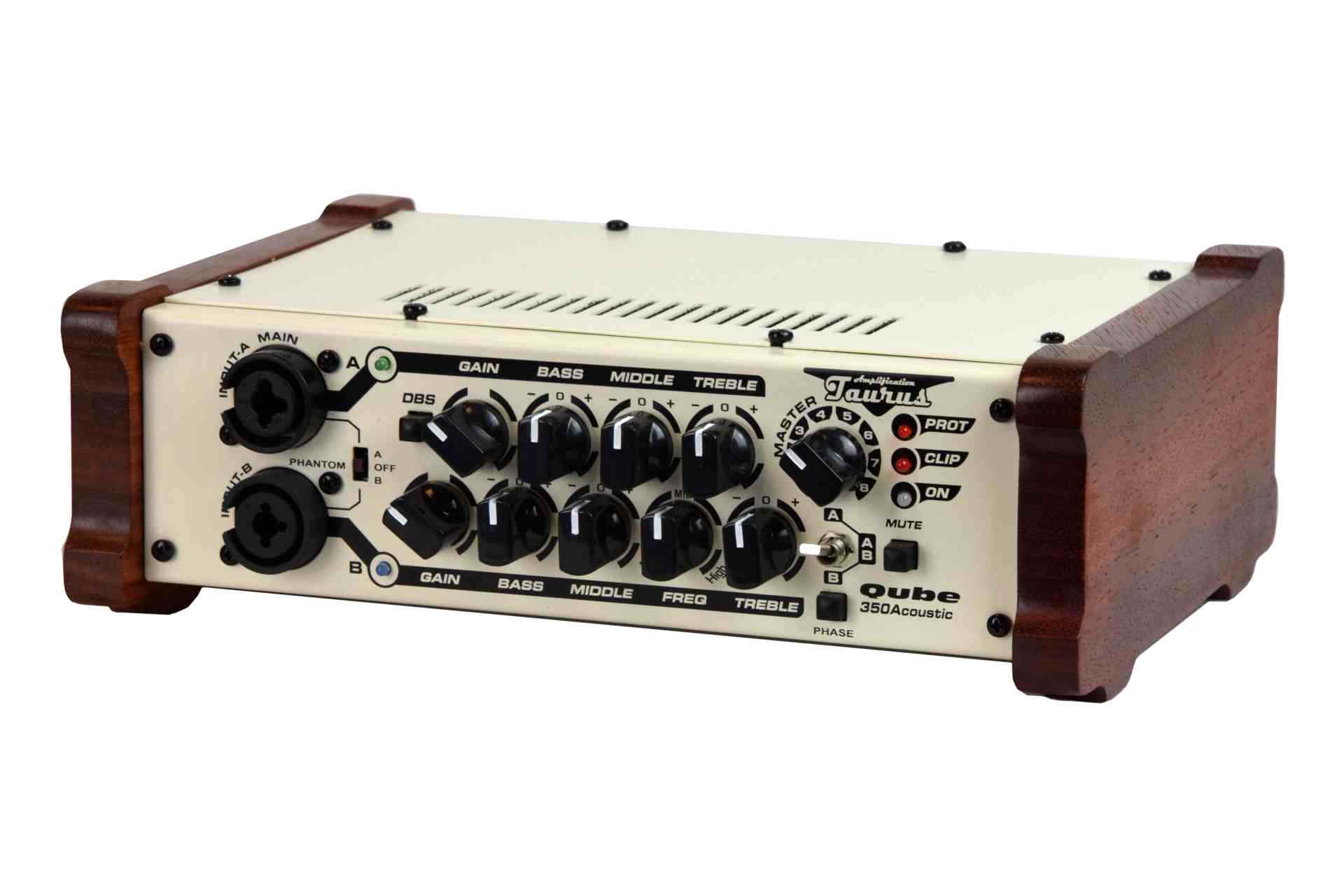

2 channels: A and B with separate tone and dynamics adjustment.
Channel A adjustment:
GAIN - preamplifier input section gain control
DBS - bass and treble color enhancement (contour character)
BASS and TREBLE equalizer with the "MLO" system
MIDDLE - mid tones control
Channel B adjustment:
GAIN - preamp input section gain control
BASS and TREBLE equalizer with "MLO" system
MIDDLE - PARAMETRIC EQUALIZER for precise mid-range adjustment
VOLUME control for A and B chanels
Channel switch: (A), (A + B), (B)
Additional functions and features:
Subsonic filter - cuts the signal band below 40Hz on the preamp's inputs

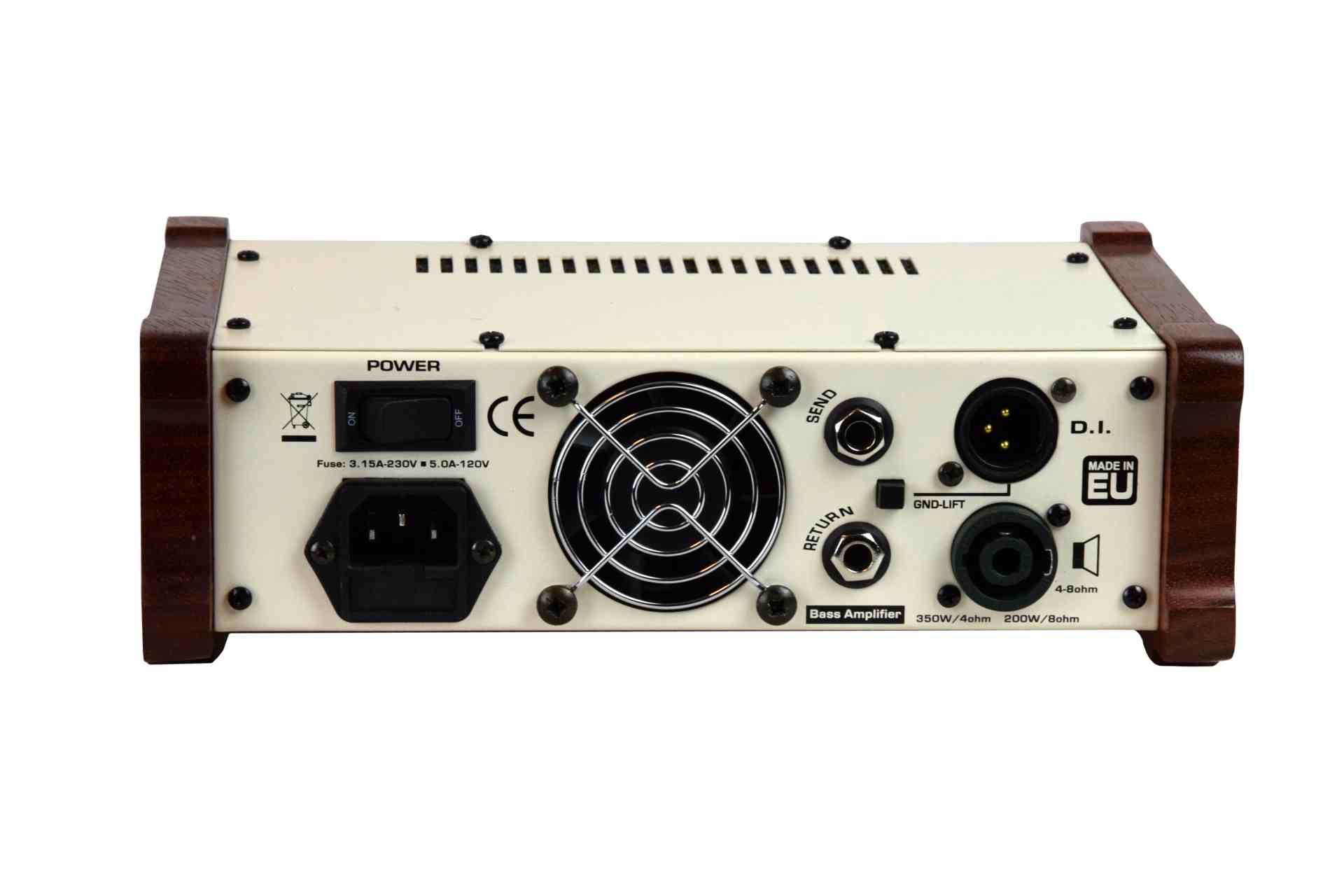

Effect loops: SEND / RETURN serial loop
LINE-OUT - line output with cabinet simulation.
GROUND LIFT - circuit switch on the linear output
Power amplifier overload LED indicator
Power amplifier clipping LED indicator
Power selector 230V / 50Hz - 115V / 60Hz
PROTECTION: thermal, short-circuit and overload protection

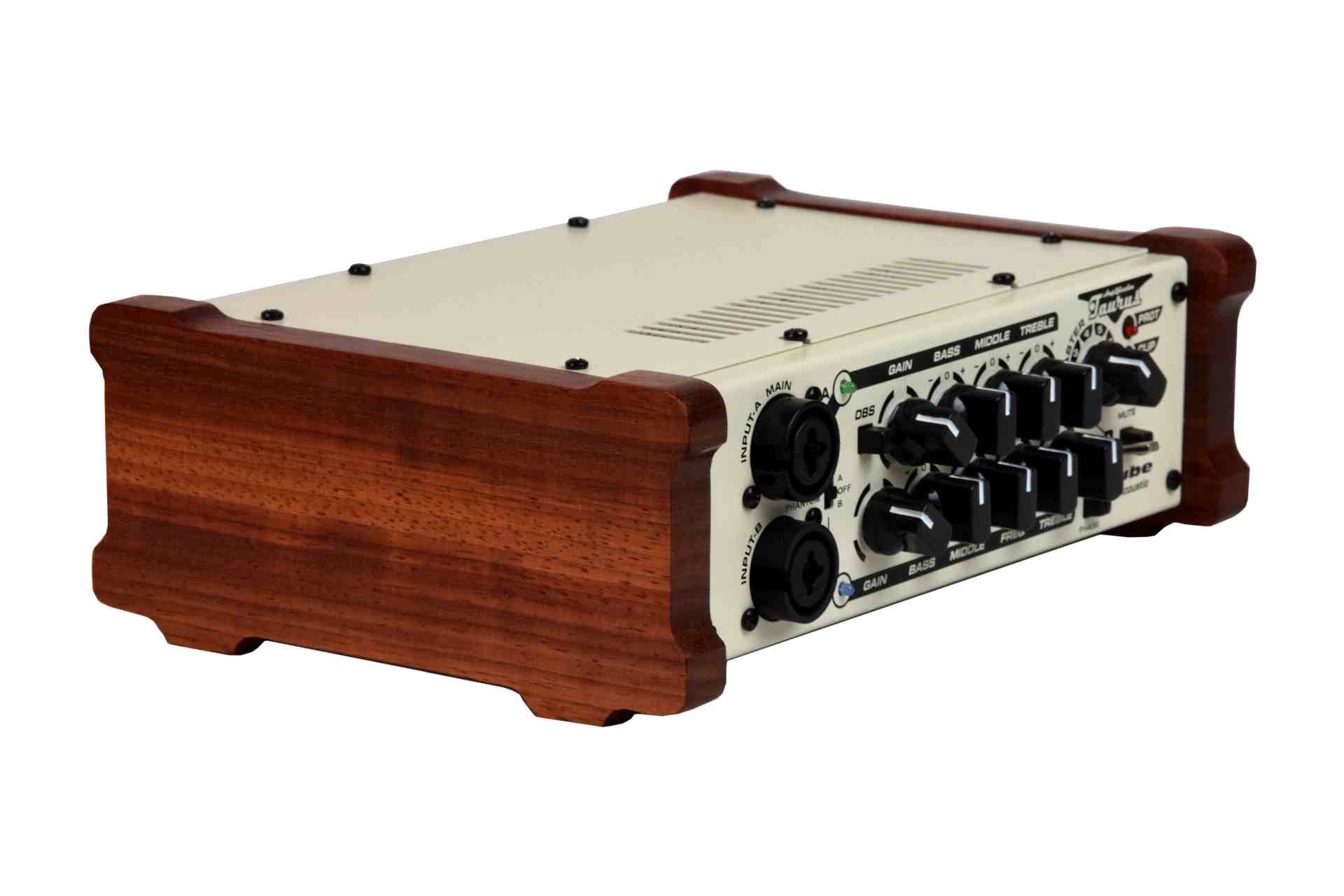

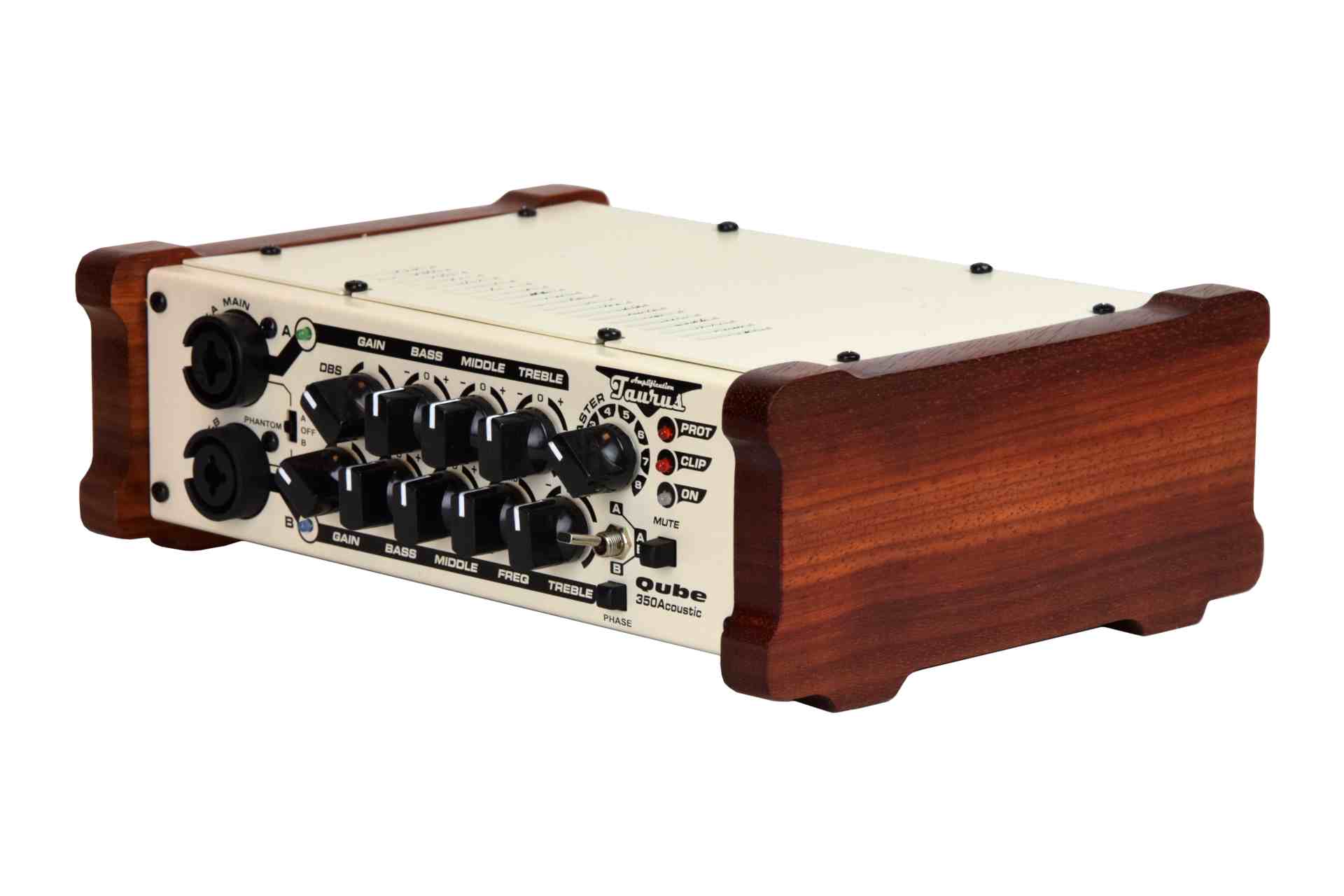

Overall dimensions: 83 x 225 x 180 mm
Weight: 2.0 kg
The amplifier is built in analog technology using a class D power amplifier. Such a combination make it possible to obtain small dimensions and weight.
